BAXCELL 3 Valve Manifolds Designed for use in conjunction with differential pressure transmitters. The basic three Valve manifold consists of two process isolation valves and one equalizing valve in a single compact unit. BAXCELL offers the following mounting arrangements:

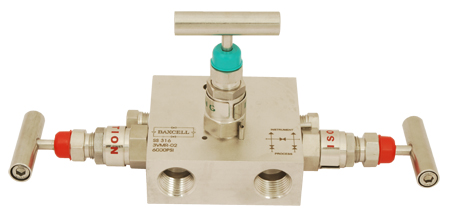

Remote Mounted (R) type(View PDF Drawing)
Designed for remote line mounting to the instrument in any selected position between the process line and the instrument. A Pair of 1/4" NPT (F), Connection with 1/4" NPT (M), Plug is provided with these units. (optional)
Single Flanged Integral (T) type(View PDF Drawing) Designed for use with differential pressure transmitters that utilize 2-1/8" (54 mm) center to center connection. On the process side two 1/2" NPT(F) connections are provided. A Pair of 1/4" NPT (F), Connection with 1/4" NPT (M), Plug is provided with these units. (optional) Also, 4 Nos high tensile mounting bolts and 2 Nos PTFE gaskets for ready installation are provided as standard.
Double Flanged Integral (H) type(View PDF Drawing) These manifolds are flanged on both sides for mounting directly to differential pressure transmitters having 2- 1/8" (54 mm) center to center connection. This model provides easy installation and comes complete with 4 high tensile mounting bolts and 2 PTFE gaskets for ready installation. A pair of 1/4" NPT (F) Vent Plugs are provided with these units.
